- Genuine trade quality heavy duty sliding gate
- Gate frame made from premium 100x100mm SHS 3mm Thick Steel
- Pickets 25×25 press top – Passes through punched top rail
- All welds silicon bronze
- Kit form – left & right sides make up to 4260W gate
- Add middle modular sections to make gates up to 8500W
- Easily width adjustable – 1x Gate end removable, simply remove pre-assembled vertical side stile by unbolting, cut width to size and re-install the removable vertical side end, should always be positioned on motor side
- Middle extension panels – Holes pre-drilled for easy assembly with internal slotted joiners
- Internal joiners made from heavy duty 5mm thick steel & hot dip galvanised & powder coated black.
- 12x Bolts per joiner ensures high strength connection
- Fast & easy assembly onsite or in factory

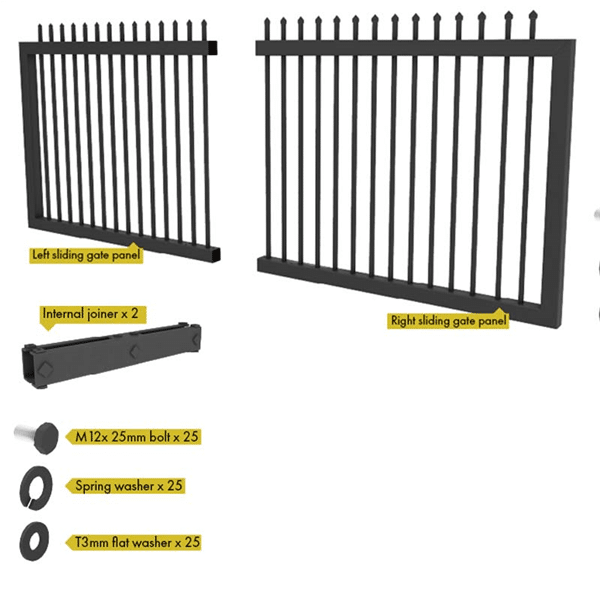

KIT INCLUDES :
- 2130W x 1790H LEFT PANEL – frame made from 100x100x3mm steel (with removable vertical stile)
- 2130W x 1790H RIGHT PANEL – frame made from 100x100x3mm steel (left and right side are interchangeable for installation purposes.. rotate as needed)
- 2 x 600mm long heavy duty internal joiners – hot dip galvanised steel
- 2 x Plastic bottom frame caps – UV stabilised black
- Hardware joiner fixing kit powder coated black > 25 x M12x25mm bolts, 25 x T3mm flat washers & 25 x spring washers
- Drill jig (only required if panel widths adjusted)
